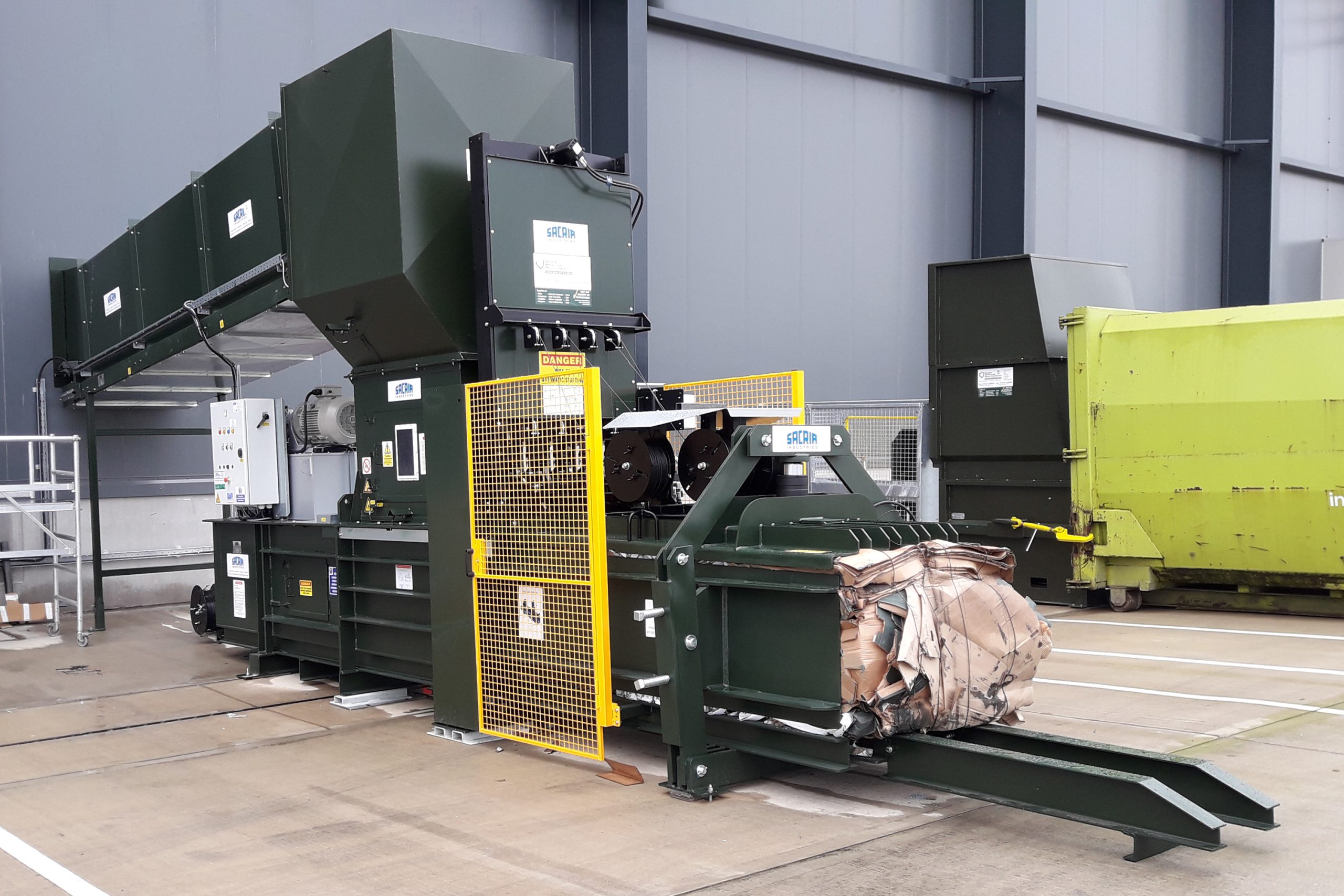

Saphir 500 AT

Automatic Horizontal Baler (20+ tonnes per week)

Our fully automated horizontal 50 ton baler meets the challenges by centralised waste handling in many businesses and organisations where huge volumes of recyclable paper-based and plastic wrapping are produced. We offer well-proven technology for special demands! The automatic tying and continuous baling allows multi-shift operation.

---

Features

• Well proven technology: based on more than 50 years of experience
• Auto Start: equipped with photocell start as standard
• High Speed: fast throughput of the material
• Baler Counter
• Progressive cutting system
• Adjustable bale length: individual settings to meet your needs
• Vertical or Horizontal Tying: great versatility to bale different sorts of material

---

Handled Materials

• Paper, Cardboard
• Plastic, Shrink film, PET/ PEHD
• Metal, Food cans, Paint cans
• Wood, Crates

Specification

Dimensions (mm) (Length, Width Height) without bale exit	7,700 x 1,850 x 3,450
Feed Opening (mm)	1,400 x 1,100
Infeed capacity (m3)	1.12
Press force (tonne)	50 / 60
Motor (kW / Hp)	15 / 22
Surface pressure (kg / cm2)	6.25
Cycles per minute	2 / 3
Channel section (mm)	1,000 x 1,800
Oil tank capacity (L)	400 / 500
Total machine weight (kg)	8,500 / 9,000
Production rate with load (m3 / hour)	80 / 150
Production accord. density (tonne / hour)	2.5 to 4.5
Automatic binding	4 wires Ø 3.2
Bale size (mm)	1,000 x 800 x (800 – 2,150)
Adjustable length (mm)	800 – 2,150
Bale weight cardboard (kg) depends on bale length	400 – 600

Ancillary Equipment

To fit the conditions in your environment, the Saphir horizontal balers offer a wide choice of in-feed systems:
